FLUID COUPLINGS
Spares and Repairs for SFU Fluid Couplings
|
|
|
|
|
 |
| SFU FLUID COUPLING |
|
 |
|

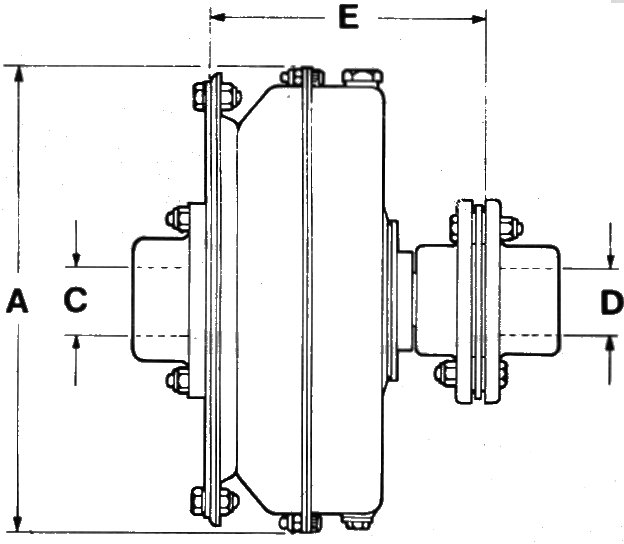

| SFU sizes and dimensions |
|
| Size | A | C | D | E |
| SFU 300 | 351 | 60 | 60 | 222 |
| SFU 350 | 398 | 80 | 60 | 237 |
| SFU 390 | 437 | 80 | 70 | 267 |
| SFU 450 | 505 | 85 | 83 | 324 |
| SFU 500 | 572 | 85 | 83 | 340 |
| SFU 550 | 632 | 110 | 100 | 406 |
| SFU 600 | 708 | 110 | 100 | 429 |
| Dimensions in mm |
|
| SFU full parts list |
|
|
|
|
|
|
|
|
